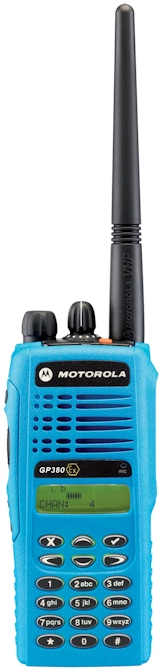

Motorola GP380 EX (ATEX) Portable Radio

Motorola GP380 EX ATEX Professional Portable Radios

Providing even greater safety for employees in hazardous environments, Motorola provides a ATEX-approved mandown option board for the GP380 ATEX radios. This factory-fitted option board automatically summ

ons assistance when the radio falls over or remains motionless for a predetermined time period.

Additional safety features include a specially designed battery connection that prevents nonATEX approved batteries from being fitted to the radios. The lockable accessory connector plug features a tamper-proof screw to control the use of accessories.

The 255-channel GP380 EX is designed for more sophisticated users who require the added functionality of a full keypad and need to communicate with a larger number of users

and groups.

GP380 EX users benefit from the ease-of-use afforded by a 14-character 7-language alphanumeric display containing a battery gauge. The contact list function means that callers can be quickly and easily identified and prioritised. In addition, predefined text messages can be sent between GP380 EX users to communicate meaningful messages when it is inconvenient or inappropriate to send a voice message.

Specifications:

• 1 Watt RF Output
• VHF (136–174MHz) UHF (403–470MHz)
• Full Keypad  (1x14 character alphanumeric display)
• 255 Channels Capacity
• Status and Contact Lists
• Missed Calls
• PL, Select 5 (5 Tone) Signaling
• Channel Spacing 12.5/20/25 kHz programmable
• Voice Operated Transmit (VOX)
• X-Pand™ Voice Compression/Low Level Expansion
• Channel Scan
• Optional Factory Fitted ATEX Option Man Down Board
• Higher Gas Protection Class: II 2G Ex ib IIC T4
• Unique Dust Protection Class: II 2D Ex tD A21 IP6x ib D21 T110°C
• Unique Mining Protection Class: I M2 Ex ib I
• Water and Dust Intrusion  IP64

The Motorola GP 380 ATEX Professional Series radios are ideal for Oil & Gas, Utilities, Commercial and Transport markets.  A radio communication solution built for professionals by professionals.
