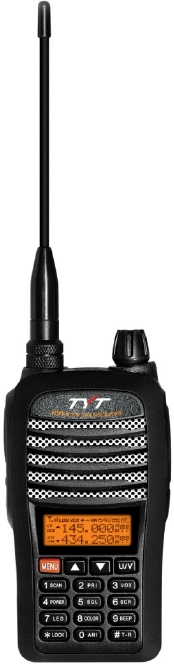

TYT TH-UVF1 Dual Band Amateur Portable Radio

TH-UVF1
Dual Band, Dual Display, Dual Standby Portable Radio

Main Features

• 128 Channels
• Dual band, dual display, dual standby
• A/B band independent operation
• FM radio receiver
• VOX function (free hands transmission)
• Tone calling 1750Hz burst tone
• Repeater shift offset function
• Tones: 50 CTCSS/104 DCS normal or invert
• Tone search scanning
• Wide/Narrow band switchable
• PTT ID/ANI function
• Busy channel lock-out
• MSK/DTMF/2/5 tone code
• 8 groups voice encryption scrambler
• Channel name setting

Frequency Range:
TX: 144-146 / 430-440MHz (Euro)
136-174 / 400-470MHz (Default)
RX: 70-108MHz (FM radio receive only)

Channel Spacing: 5KHz, 6.25KHz, 10KHz, 12.5KHz, 25KHz, 37.5KHz, 50KHz, 100KHz
Antenna Impedance: 50 Ohm
Mode of Operation: Simplex or Semi-Duplex
Operating Temperature: -20~+50C
Operating Voltage: 7.2 VDC
Dimensions: 115x55x31mm
Weight: 260gr
Output Power: UHF:4/1Watts  VHF:5/1Watts
Receiver Sensivity: -122 dBm (12dB Sinad)
